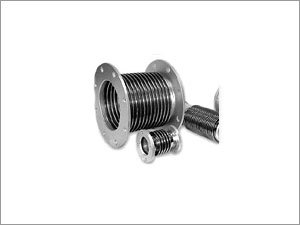

Metal Bellows

Metal Bellows
Metal Bellows
Product Code : 19
Product Description

Due to our acute business skills & immense expertise in this business domain, we are considered amongst the pioneer manufacturers and suppliers of Metal Bellows. In accordance with EJMA Standards, these bellows are manufactured by our professional using fine quality metals and hydraulic process. Available in different sizes, these Metal Bellows are widely used in pipeline systems for connecting the pumps and vessels.

Features



  • Capable of absorbing the vibrations developed from pumps, engines and compressors.
  • Increase the service life of a pipeline system
  • Permits greater axial, lateral and angular movements



Further Details

Metal bellows are generally used in pipeline systems, which connect the pumps and vessels. The design of the folds in metal bellow permits greater axial, lateral, and angular movements. To increase the angular or lateral flexibility, the ties, pivots or other trimmings can be added to a metal bellow. The service life of these devices is determined on the basis of shape, material and degree to which the junction must be able to move, and of course, forces that are more than the designed limits.

Design Features

We design and supply Single Ply as well as Multi-ply bellows membranes and expansion joints in various sizes ranging from 20 mm to 2000-mm nominal diameter. The bellows in sizes of 20 mm to 300 mm are fabricated using the hydraulic process while higher diameter is made using the roll forming.

Using these bellows, flanged-end and fused-end expansion joints can be easily and smoothly fabricated. Both universal as well as double expansion joints uses two bellows.

Quality
Our bellows are designed as per the EJMA Standards, however, we are capable to design these with customization to suit specific customer specifications. We have a standard range of single ply bellows for uses in engine exhaust applications as well as general-purpose and low-pressure applications.

Application of Products
The quality metal expansion joints supplied by us have found crucial applications in pipeline technology and are used to counterbalance length changes, which generally occur in pipelines due to temperature changes. Besides this, the metal expansion joints are capable of absorbing the vibrations developed from pumps, engines, compressors or turbines. Depending on the problem, the axial, lateral as well as angular movements can be compensated. Metal expansion joints provide cost advantage and increase the service life of a pipeline system.
